General specs (no stock)

• Length: 651mm
• Weight:  1.36kg (with magazine)
• Reversible feature: right handed/ left handed bolt handle
• Ambidextrous features: magcatch, safety and hop-up adjustment.

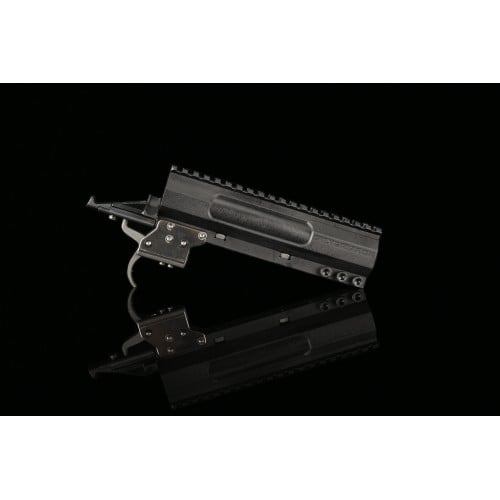

Receiver:

• PA6 nylon receiver, glass fiber reinforced
• High Picatinny rail for mask users

Barrel:

• Tapered Aluminium outer barrel
• Barrel length: 330 mm, 6.05 brass AEG type
• Quick change barrel (bayonet lock + clamp into the receiver)
• M24x1 threaded outer barrel (compatible with any M24 x1 muzzle device)
• 1 barrels spacers

Magazine / feeding system:

• Magazine capacity: 48 bbs
• Feeding ramp buffer capacity: 20 bbs
• Quick release button inside the magwell to empty the feeding tube.
• Steel mag catch, AK style.
• Empty weight:

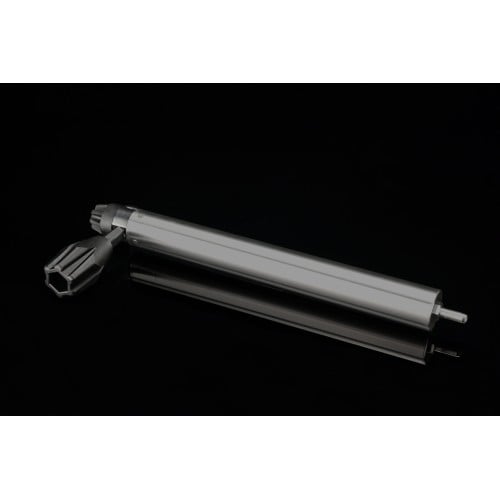

Bolt:

• Bolt usable volume: 41 cc
• 6061 T6 aluminum cylinder and cylinder head, grey anodized
• 6061 T6 aluminum piston, red anodized, with 90° piston end (carbon steel)
• PA6 glass fiber reinforced spring guide and bolt end cap.
• APS 13 mm spring compatible, 90 Newton stock spring pre installed + extra 120 Newton spring included (Installed type spring may vary depending on countries regulations, extra spring type may vary or may not be included depending countries regulations , please check your retailer website for more information).
• Quick change bolt
• 270 grams

Trigger group:

• Stainless steel piston sear
• Stainless steel spring guide stopper
• Stainless steel trigger box
• Steel safety
• 90° piston sear sliding on 2 ball bearings
• Preload adjustment
• Dual stage adjustment

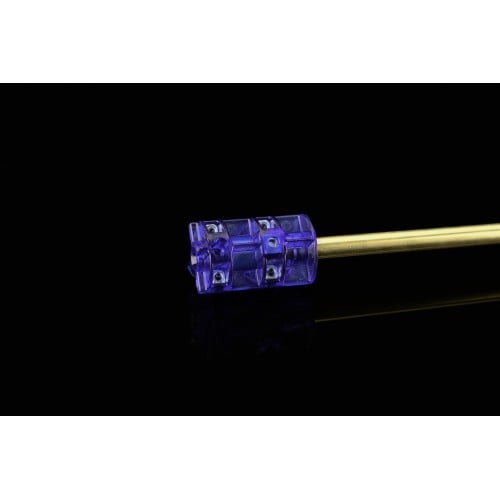

Hop-up:

• Polycarbonate body
• TDC design, can be used no matter the scope used.
• 50 indexed positions (by 15 µm increment)
• AEG hop-up rubber compatible
• 60° hop-up rubber AEG
• anti double-feed system

Chassis:

• Fiberglass reinforced Nylon construction

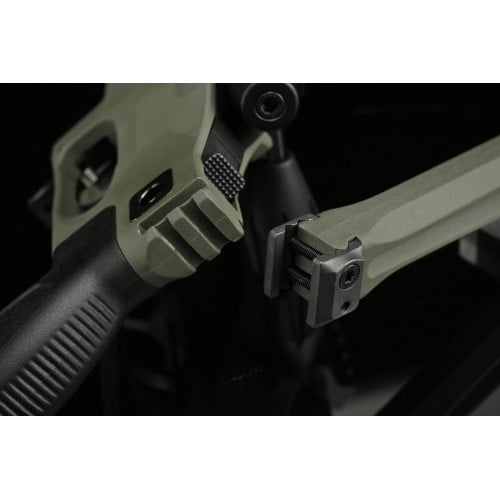

• Picatinny stock attachment
• 3 MLOK slots on each side
• 2 MLOK slots under
• 2 QD points for slings, central position
• Available in Black, FDE or Green color.

With Recon stock: TAC-41 LR-S

• Fiberglass reinforced Nylon construction, NBR buttpad
• Steel QD points (both sides), 3 possible positions
• Adjustable length (100mm), cheek rest height (40mm)
• Overall length: 909mm/939mm
• Weight with magazine: 1.94kg
